Types of Komatsu Bulldozers and Their Use in Various Projects

The types of Komatsu bulldozers are quite diverse and can be differentiated based on the drive system, blade type, unit size, to job requirements. Komatsu has a line of dozers ranging from small classes for work with limited areas to large units designed for heavy duty work such as large-scale construction and mining.

The bulldozer itself is a heavy equipment that has a blade or pusher knife at the front. Its main function is pushing, transfer, spread, and leveling materials such as soil, pasir, batu, as well as excavated materials.

The choice of Komatsu bulldozer type needs to be adjusted to the terrain conditions, volume material, wide working area, as well as the type of work. For example, bulldozers with low ground pressure are more suitable for soft ground conditions, while dozers with standard tracks can be used for various construction and material moving jobs.

Then, What are the types of Komatsu bulldozers and how are they used in the field?

Types of Komatsu Bulldozers Based on Drive System

One way to differentiate Komatsu bulldozers is based on the drive system used. The most common type is the crawler dozer, while wheel dozers use rubber wheels.

1. Crawler Dozer

A crawler dozer is a bulldozer that uses tracks or chain wheels as its driving system. Tracks provide a wider contact area with the ground surface so that the dozer can work stably in various terrain conditions.

This type is widely used for work that requires large thrust, including land clearing, land transfer, area leveling, road work, to mining.

Crawler dozers also have several track and blade configurations that can be adjusted to suit job conditions. Komatsu itself divides its dozer lines based on small classes, mid-size, large, hingga surface mining dozers.

In Indonesia, The crawler dozer type is quite common in construction projects and mining work because its track characteristics support work on terrain that is not always flat.

2. Wheel Dozer

Different from crawler dozers, Wheel dozers use rubber wheels as their driving system. The use of wheels makes it easier to move the tool from one location to another compared to a tracked dozer.

Wheel dozers are more suitable for relatively hard surfaces and work conditions that require greater mobility. Its use can be found in construction areas, mining, as well as work on moving certain materials.

However, Not all Komatsu bulldozer lines use a rubber wheel configuration. Because of that, Unit selection needs to be adjusted to the model and project needs.

3. Low Ground Pressure atau Swamp Dozer

For working in soft soil or areas requiring low pressure to the ground surface, a bulldozer with a low ground pressure configuration is used (LGP).

In this type, the track is made wider so that the contact area with the ground becomes larger. The aim is to help distribute the weight of the equipment so that the bulldozer is better able to work in soft ground conditions.

Komatsu has a PX configuration designed for soft or wet ground conditions. For example, The Komatsu D65PX-18 uses a longer track and lower ground pressure to aid capability flotation in soft ground conditions.

PSU also provides Komatsu D3 and D6 Low Ground Pressure for project needs that require such configuration.

Types of Komatsu Bulldozers Based on Size

Komatsu divides its dozer lines by size class, starting from small dozers, mid-size dozers, large dozers, hingga surface mining dozers.

This division helps users determine units based on the scale of work and thrust requirements.

1. Small Dozer

Small dozers prioritize a more compact size and maneuverability. This type can be used on projects that require tools with a more flexible workspace.

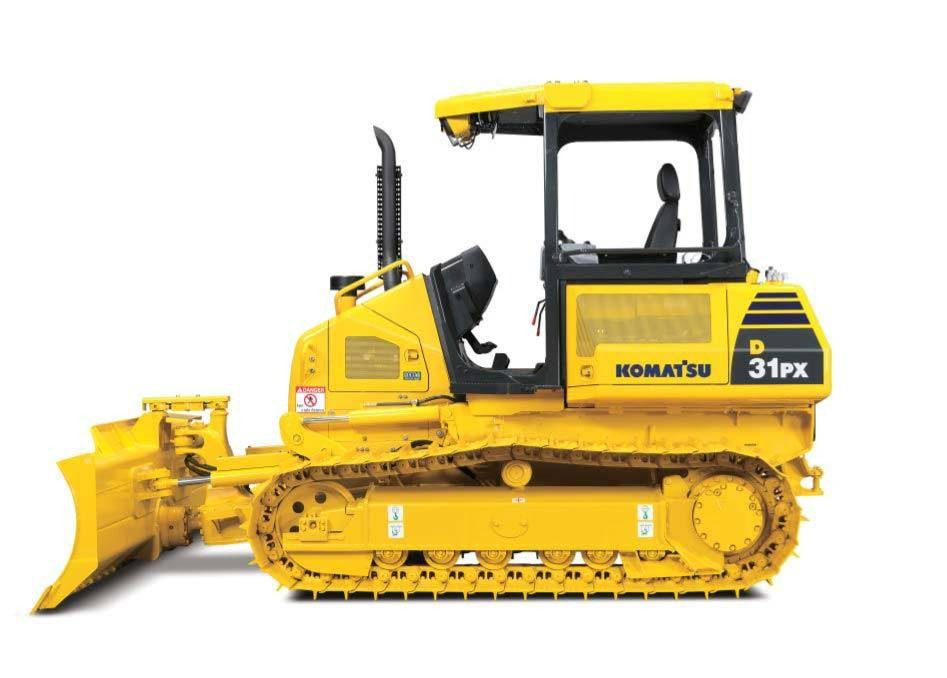

Examples of well-known models in the Komatsu line include the D21, D31, and D39. Models in this class can be used for work such as land clearing, agricultural and plantation work, certain scale road works, to construction work.

For projects with limited areas, Small dozers can provide an advantage because they are easier to maneuver than large units.

2. Mid-Size Dozer

Mid-size dozers are between the small and large classes. This class can be used for construction work that requires a combination of pushing power, productivity, and maneuverability.

One example is the Komatsu D65. On the official Komatsu specifications, The D65EX-18 has power 217 HP and operating weight around 20.7–22.1 tons, with blade capacity 5,6 m³.

With this capacity, D65 class can be used for various jobs such as road construction, land leveling, earthworks, and other construction projects.

3. Large Dozer

Large dozers are used for work that requires greater thrust and blade capacity.

The Komatsu D85 is an example in this class. D85PX-18, for example, has power 264 HP and operating weight approx 29,3 ton. PX configurations with wider tracks are designed to provide capability flotation good in soft soil conditions.

This class of dozer can be used for large-scale construction work, land clearing, material transfer, to other heavy work.

4. Mining Dozer

For mining work with large volumes of material, a bulldozer with much higher capacity and power is needed.

One example from the Komatsu line is the D155AX-8. This model has power 354 HP, operating weight approx 40,5 ton, and blade capacity 9.4–11.9 m³.

Units of this class are designed for heavy duty work such as dozing and ripping in areas that require high productivity.

Komatsu Bulldozer Blade Types

Apart from the drive system, Komatsu bulldozer types can also be differentiated based on the blade used. Form and blade type on bulldozers affects the tool's ability to push and move material.

1. Straight Blade

Straight blade or S-blade has a relatively straight shape and is suitable for work that requires the ability to penetrate and cut material.

This blade can be used for jobs such as grading, land cutting, surface leveling, to certain material moving jobs.

Komatsu provides several blade configuration options on certain dozer lines. On the D65 family, D85, and D155, for example, Blade selection can be tailored to the application, including straight, semi-U, and other configurations.

2. Power Angle Tilt atau PAT Blade

PAT blade merupakan blade yang dapat diatur sudut dan kemiringannya untuk menyesuaikan arah material yang didorong.

Konfigurasi ini membuat bulldozer lebih fleksibel untuk pekerjaan yang membutuhkan kemampuan grading, alignment, dan pemindahan material ke arah tertentu.

Blade jenis ini banyak ditemukan pada dozer berukuran kecil hingga menengah, terutama untuk pekerjaan yang membutuhkan manuver dan pengaturan blade secara lebih fleksibel.

3. Semi-U Blade

Semi-U blade memiliki bentuk yang lebih melengkung dibandingkan straight blade, dengan bagian samping yang membantu menahan material ketika didorong.

Konfigurasi ini dapat meningkatkan kemampuan membawa material dalam proses dozing. Komatsu menyediakan konfigurasi semi-U pada sejumlah model dozer, termasuk keluarga D65, D85, and D155.

4. Sigma Blade

Sigma blade is a blade design created to help increase the dozer's capabilities in material moving work.

The more complex blade shape helps the material stay in the blade area when pushed. This blade type can be selected in specific model configurations according to application requirements.

Komatsu lists blade options such as straight, semi-U, Sigmadozer, and full U on the D65/D85/D155 family, with availability depending on the model.

5. Full-U Blade

Full-U blade has a more curved shape with wings on both sides so it can hold large amounts of material.

This blade is better suited to the job dozing with high material volumes. Komatsu lists Full U as one of the blade options on certain large models, including D155.

Examples of Komatsu Bulldozer Models and Their Use

Below are several Komatsu models that can be used as an illustration based on class and job requirements.

ModelClassExamples of use
Komatsu D21SmallAgriculture, plantation, and small-scale land work
Komatsu D31SmallLand clearing and certain construction work
Komatsu D39SmallEarthworks and construction
Komatsu D65Mid-sizeRoad, construction, land leveling
Komatsu D85LargeLarge scale earthworks and construction
Komatsu D155Large/HeavyMining and work dozing heavy
Komatsu D275Heavy/MiningLarge scale mining work
Komatsu D575ASuper dozerMining work with very large power and capacity requirements

Use of Komatsu Bulldozers in Various Projects

This type of Komatsu bulldozer can be used in various sectors because of its main ability to push and move material.

1. Road Construction Projects

Bulldozers can be used for road construction projects like opening a work area, cut and move soil, do grading, and level the surface.

On road construction, bulldozers are usually part of a series of heavy equipment that works with excavators, dump truck, and compactor.

The choice of dozer size needs to be adjusted to the volume of material and the size of the project area.

2. Land Clearing and Leveling

Bulldozers are often used for clearing and arranging the land before construction begins.

Work may include pushing soil, cleaning certain materials, level the surface, and form the initial contour of the land.

For jobs with more limited areas, Small class dozers can be more easily maneuvered. Meanwhile, projects with large areas may require larger capacity units.

3. Mining Project

In mining, bulldozers are used for material moving work, dozing, area leveling, creating access, to other supporting work.

For heavy requirements, units with greater power and blade capacity are more appropriate. Komatsu D155AX-8, for example, has power 354 HP and blade capacity up to 11,9 m³ in certain configurations.

4. Plantation and Agriculture

Small bulldozers can be used to help with agricultural or plantation land preparation work.

Work may include clearing the area, material cleaning, land leveling, and the formation of the work area.

The size of the unit needs to be adjusted to land conditions so that work can still be carried out with the available maneuvering space.

5. Forestry and Logging Work

In the forestry area, Bulldozers can be used to open or organize work routes and help with material moving work.

Terrain conditions are an important consideration because work locations can have uneven contours, soft ground, or a certain slope.

In conditions like this, The choice of track and blade type needs to be adjusted to field conditions.

6. Leveling and Grading Work

Bulldozers are not only used to push large amounts of material. With appropriate blade configuration, This tool can also be used to assist the process grading and surface leveling.

Some Komatsu dozer lines are even available with blade control technology to help with more precise grading.

Differences between Komatsu Standard Track and Low Ground Pressure Bulldozers

One consideration when choosing a bulldozer is the type of track used.

Standard track is more commonly used for various conditions of construction work and material movement. Meanwhile, low ground pressure is designed with a larger track contact area so that the pressure on the ground surface can be reduced.

The LGP configuration can be an option when the bulldozer must work on soft ground or wet conditions. Komatsu D65PX-18, for example, using a wider track and designed to help flotation on soft or wet ground conditions.

PSU itself provides Komatsu D3 and D6 with standard track and low ground pressure options, so that users can adjust unit selection to project conditions.

How to Choose the Right Type of Komatsu Bulldozer?

Choosing a bulldozer is not enough just based on the brand or size of the unit. The following factors need to be considered.

Medan Conditions

Pay attention to whether the project location has hard soil, soft ground, rocky area, inclined terrain, or wet conditions.

The terrain will determine whether a standard track or low ground pressure unit is more suitable.

Volume Material

The greater the volume of material that must be moved, requirements for blade capacity and thrust may also increase.

For light work, a small dozer can suffice. Meanwhile, work moving large volumes of material may require medium or large class units.

Work Area Size

The area determines how much space is available for maneuvering.

In a limited area, Small dozers can provide greater flexibility. On the contrary, open areas with high work volumes allow the use of larger units.

Type of work

Determine whether the bulldozer was used for land clearing, alignment, grading, material transfer, road construction, or mining work.

These requirements will determine the unit class and blade configuration used.

Duration and Mobilization

If the bulldozer is only needed during certain periods, Renting a unit can be an alternative to buying. Apart from avoiding large initial investments, Leasing can also provide flexibility in determining the type of unit according to the project.

Need Komatsu Bulldozer Rental for Your Project? Check the unit at PT Perkasa Sarana Utama

If you need a Komatsu bulldozer for a construction project, land clearing, alignment, mining, or other earthworks, PT Perkasa Sarana Utama (PSU) provide several unit options.

Based on the PSU catalogue, currently available:

Komatsu D3

Komatsu D3 is available in Standard Track and Low Ground Pressure options in the PSU catalog. The D3 can be an option for projects that require a bulldozer with a more compact size and more flexible maneuverability.

Komatsu D6

PSU provides the Komatsu D6 in Standard Track and Low Ground Pressure configurations.

Class D6 can be used for work that requires greater capacity than a small dozer. In general, Komatsu's D65 line is in the mid-size class, with blade and track configurations that can be adjusted based on application needs.

Komatsu D8

For jobs that require greater thrust, PSU provides Komatsu D8 Standard Track.

This unit may be considered for projects with earthwork and heavier material moving. The choice of unit still needs to be adjusted to the volume of work, terrain conditions, and project needs.

You can view the unit selection directly via catalog bulldozer PSU.

Quick contact the PT Perkasa Sarana Utama team right now for the best offers and unit availability this week.
